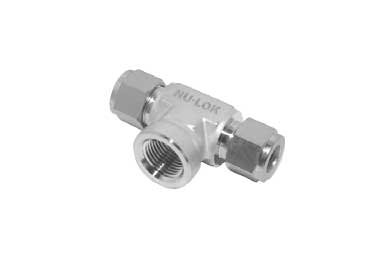

Tube Fittings Female Branch Tee

in stock

Feature

  • Material traceability: NU-LOK Tube Fittings in material SS316/SS316L are Heat/Lot code traceable.
  • Material Of Construction:- Stainless Steel, Monel, Conel, Inconnel
  • Size:- 1/8” to 2” ; 4mm to 50mm
  • End Connection:- NPT/BSP/BSPT/UNF/METRIC/SW/Plain.
  • Pressure Rating:- Up to 9000 PSI

Fractional Tube

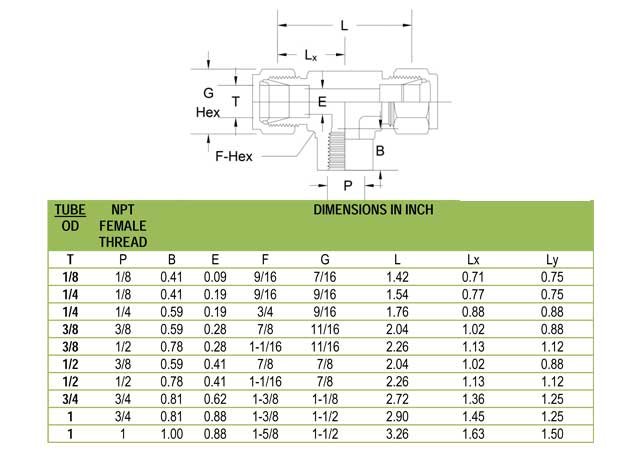

female branch tee in inch

Metric Tube

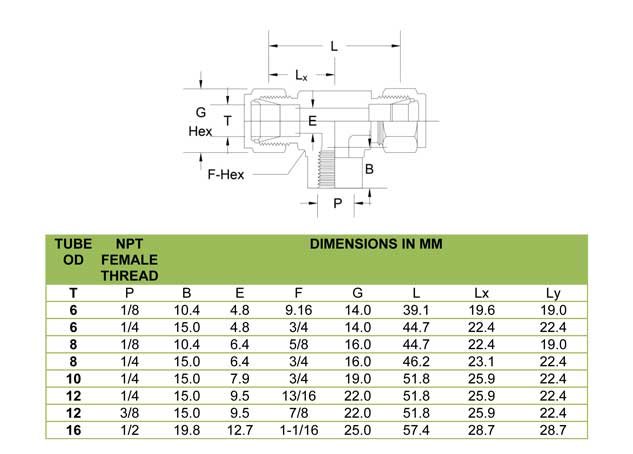

female branch tee in mm

Installation Guide

  • Insert the Tube Fittings Assembly and tighten the nut as per assembly instruction provide in this catalogue in section of Installation Instructions (1.1/4 turn form- tight) and the joint is ready to take any kind of pressures from low to high.
  • The front ferrule, as it is urged forward against the tapered area of the body is forced inward gripping and subsequently sealing the leading edge tightly onto tubing.
  • Simultaneously the back. Ferrule , done tailed directly behind the front ferrule, swages beneath its trailing edge affording the desired “coining” action and mechanical connection of tubing and fitting.
  • It is this interaction of ferrules that allows NU-LOK too achieves its excellent sealing capabilities under a wide variety of application variables.
