Size

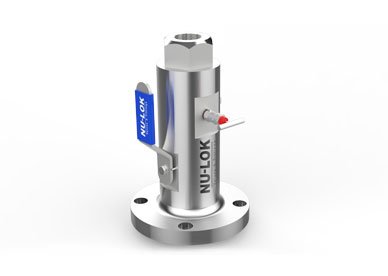

Single Block and Bleed Valves
in stock
- Threaded or one-piece forged body.
- Piping and instrument valves in one body.
- 1/2 female NPT standard outlet.
- Orifice (ball-and-needle-valve configuration) : Ball 3/8 in. (9.5 mm).
- Needle 0.16 in. (4 mm).
- Orifice (all-ball-valve configuration) : 3/8 in. (9.5 mm).

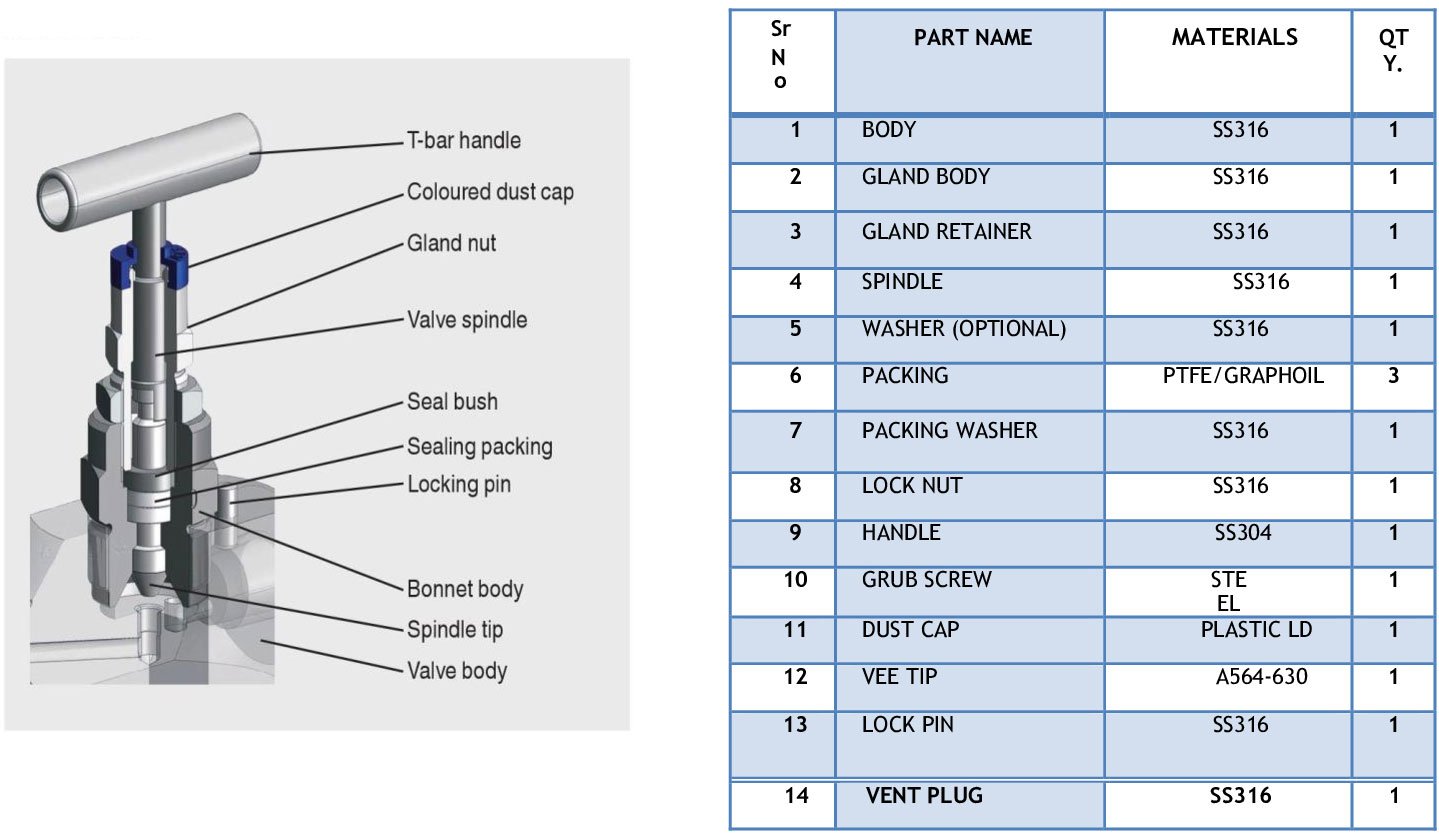

Material
Application
- Chemicals industry
- Fats and fertilizer industry
- Construction industry
Parameters
Pressure Rating : up to 6000 psig (408 bar) at CWP
Temperature Rating : -54ºC to 232ºC with PTFE packing
Up to 426ºC with optional graphite packing
