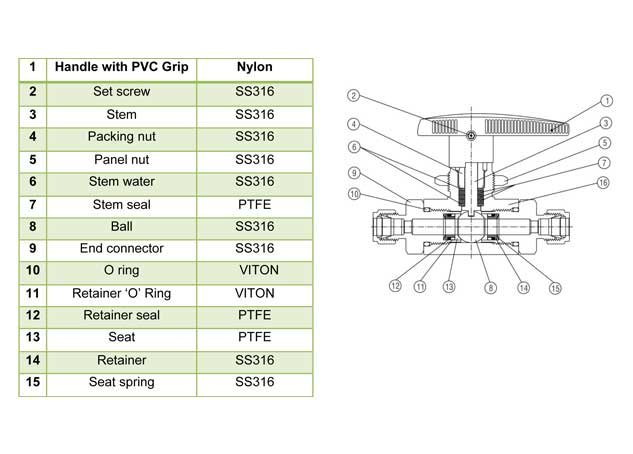

Material

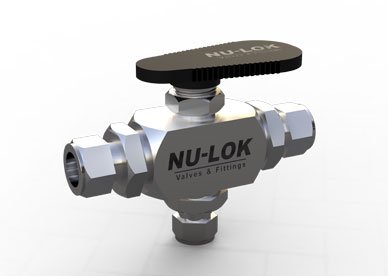

Medium Pressure Panel Mountable Ball Valve
in stock
- High Flow capacity in Compact size Valves.
- Balls are Blow out proof.
- 100% factory Tested.
- Super finish Ball for effective sealing.
- Working pressure of 1500psi & 3000psi.
- SS 316 construction for corrosion resistance,full or reduced bore for excellent flow.3 piece design
- Ball hard chrome plated for smooth operation.
- Free floating ball design provides seat wear compensation
Size
Specifications
- Design : fire safe design, teflon lined, jacketed design, multiport design, PTFE lined.
- End connections: screwed ends to BSP,NPT,BSPT socket weld ends to ANSI B 16.11 inspection.
- Each Valve is factory tested with nitrogen for leakage at the seat and packing
Application
- Adequate Pressure Instrument Lines
- CNG and other Gases
- General Plant Service
- Instrument Air Lines
