Material

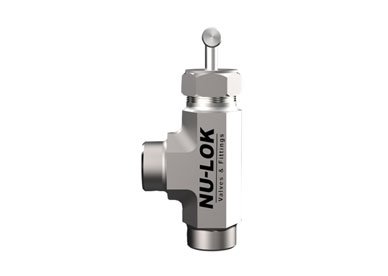

Medium Pressure Angle Body Needle Valves
in stock
- Union bonnet design ensures high integrity seal under severe service applications.
- Packing below the power threads protects thread lubricants from media and isolates the lubricants from
the media - Dust seal in the packing nut protects stem threads from external contamination
- Stem swivel above the packing eliminates entrapment area and increases packing life
- Choice of Grafoil® or PTFE packing
- Choice of Regulating or Blunt stem types. Blunt stem type helps combat wire draw which may occur when two phase flow is present (i.e. steam service)
- 316 stainless steel construction
- Available in Panel mountable Design.
- Orifice: 0.177″ to 0.437″ (4.5mm to 11.1mm)
- CV: .53 to 3.55

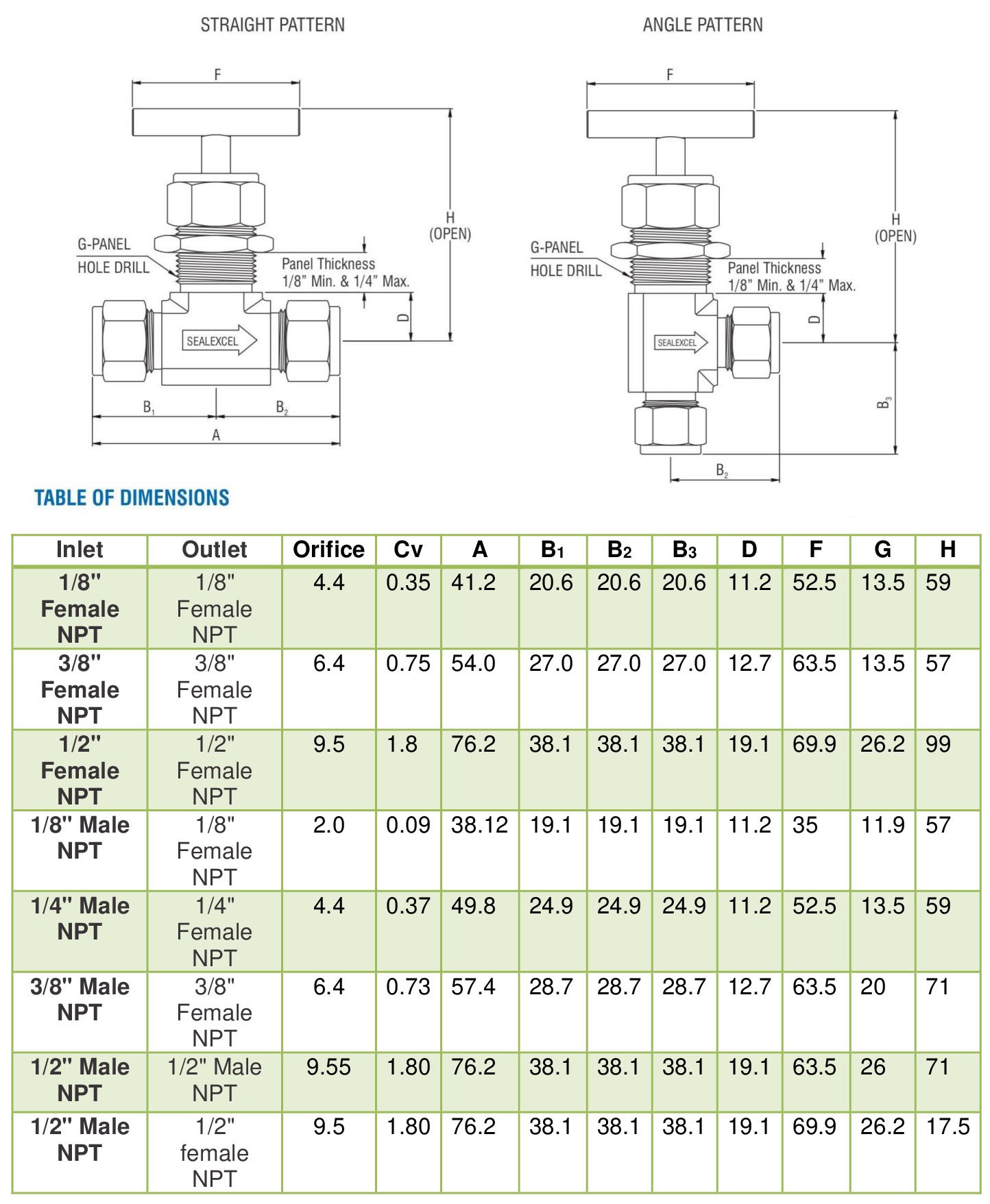

Size
Application
- General Plant Service
- Hydraulic and Pneumatic
- Pressure measurement devices
- Venting
