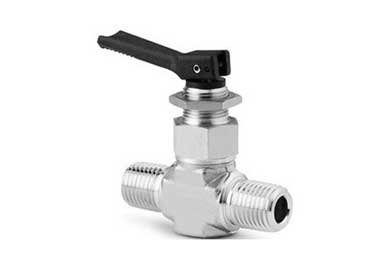

Toggle Valves

in stock

Feature

  • Available in SS316 ,SS304.
  • Heat Code Traceable to certified material test report
  • Rugged and compact design
  • Quick opening and closing
  • Straight and angle flow Patterns
  • Panel mountable
  • Flow coefficient (Cv) from 0.11 to 0.70
  • Orifice sizes :0.080″ (2mm), 0.125″ (3.2mm), 0.250″ (6.4mm).

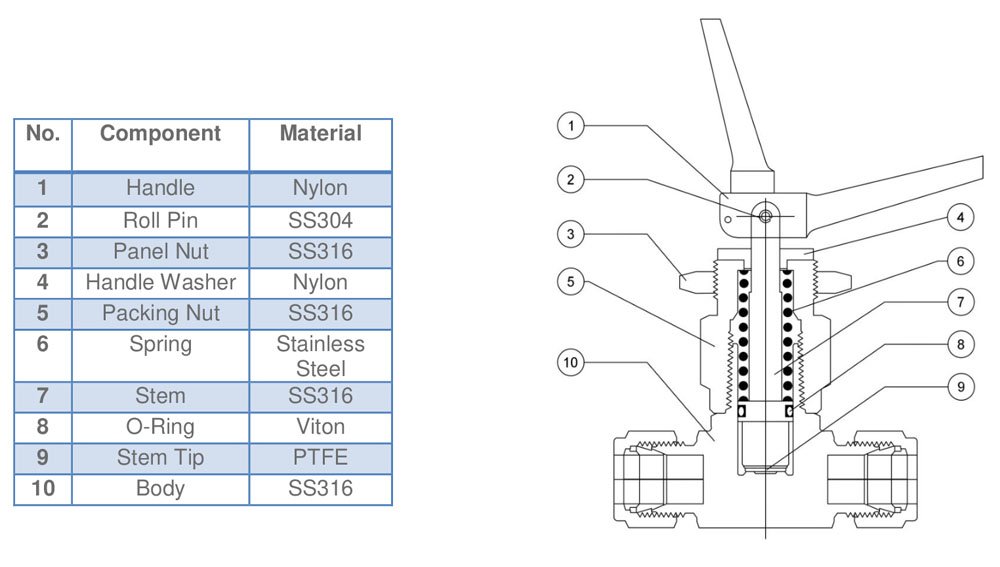

Material Specification

toggle valve exporter

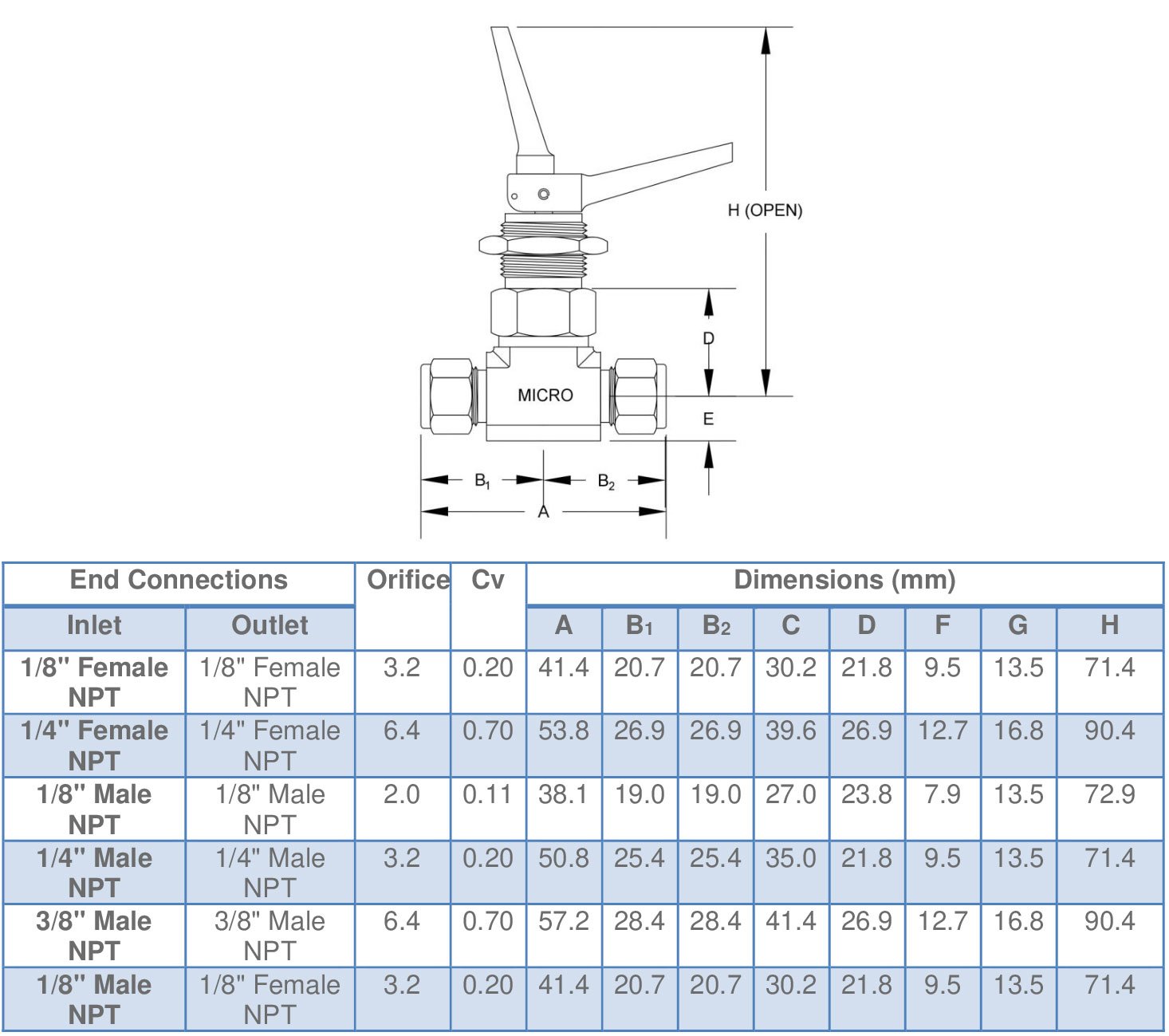

Outer Dimensions

toggle valve supplier

Operating Parameters

Pressure Rating : Up to 10,000 psig (680 bar) at CWP
Temperature Rating : -54 to 232 C with standard PTFE packing

Application

  • General Plant Service
  • Hydraulic and Pneumatic
  • Pressure measurement devices
  • Venting
