Material Specification
| Sr No | Component | Material |
|---|---|---|
| 1 | Steam | SS316 |
| 2 | Vent Tube | SS316 |
| 3 | Body | SS316 |

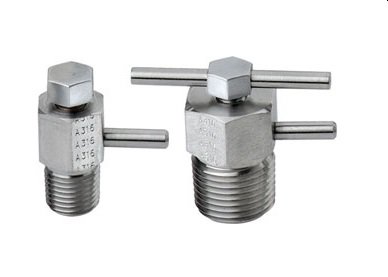

Bleed Valves
in stock
Feature
- Available in SS316L
- Heat Code Traceable to certified material test report
- Compact and convenient installation
- Vent tube design prevents accidental removal of the stem
- Vent tube directs excess liquid or gas from system line
- Flow coefficient (Cv) 0.25
- Orifice size 0.125″ (3.20mm)
- Variety of end configurations includes Male/Female NPT, and SAE pipe connection
- Every valve is factory tested
Outer Dimensions
| End Connections | CV | Dimensions mm | |||
|---|---|---|---|---|---|
| Inlet | Outlet | A | B | C-Hex | |
| 1/8″ Male NPT | OD 3/16″ tube stub | 0.25 | 23.9 | 19.1 | 15.87 |
| 1/4″ Male NPT | OD 3/16″ tube stub | 0.25 | 23.9 | 19.1 | 15.87 |
| 3/8″ Male NPT | OD 3/16″ tube stub | 0.25 | 26.3 | 22.3 | 22.2 |
| 1/2″ Male NPT | OD 3/16″ tube stub | 0.25 | 26.3 | 22.3 | 22.2 |
Application
- General Plant Service
- Instrument isolation
- Hydraulic and pneumatic
- Venting
