Material
High Pressure Panel Mountable Ball Valve
in stock
- Available in Material SS316
- Ball hard chrome plated for smooth operation.
- Three piece body design, Panel mountable
- Floating ball design provides seat wear compensation.
- Quarter turn positive stop handle.
- PTFE or PEEK Ball seat
- Low torque operation, Bi-directional Flow .
- Variety of end configurations includes, Male/Female NPT, BSPT pipe connections.

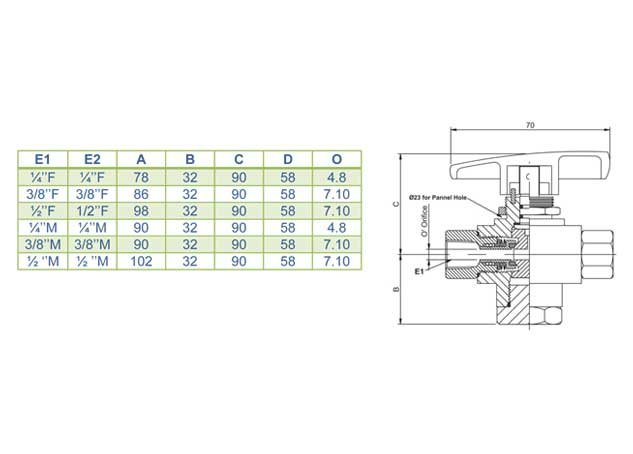

Size
Specifications
- Design : fire safe design, teflon lined, jacketed design, multiport design, PTFE lined.
- End connections: screwed ends to BSP,NPT,BSPT socket weld ends to ANSI B 16.11 inspection.
- Each Valve is factory tested with nitrogen for leakage at the seat and packing.
Application
- High Pressure Instrument Lines
- CNG and other Gases
- General Plant Service
- Instrument Air Lines
