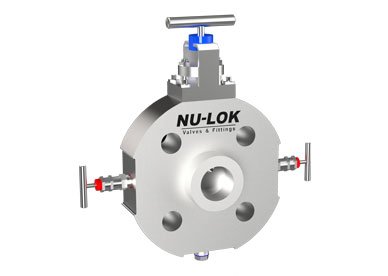

Double Block and Bleed Monoflange Valves

in stock

Feature

  • Available with OS & Y bolted bonnet,
  • Integral screwed bonnet and bolted bonnet design.
  • ANSI B16.5 Flanged Inlet Connections 1/2″ to 2″ Sizes.
  • Class 150 rated to Class 2500 rated.
  • API Flanged Inlet Connections also available.
  • 1/2″ – 14 NPT (Female) Standard Outlet.
  • 1/4″ x 18 NPT (Female) Standard Vent.
  • Standard Material of construction: SS316 / SS316L

Material

double block and bleed valve exporter

Size

double block and bleed valve supplier

Operating Parameters

Pressure Rating : Class 150 to Class 2500 in accordance with ASME B16.5.
Temperature Rating : Up to 204°C with PTFE Packing.
Up to 428°C with Graphite Packing.

Application

  • Double block and bleed instrument isolation.
  • Gauge isolation, Instrument drain, Chemical injection connection, Sample connection.
  • Chemical seal instrument isolation.
